Finished Set - Mr. Burns

Ruth Caplin Theater - UVA Drama

Unit List

Unit Pricing Summary

Labor Summary

Roll Door Top Support Brackets

Side view w/Unistrut part information. 4 were made from Unistrut components to attach the walls to the catwalks

Finished Roll door bracket

Crash pad construction

I worked with the costume shop to produce a new crash pad with button closure, as well as two blue velour curtains with magnetic hangers for the show.

Crash pad stuffed

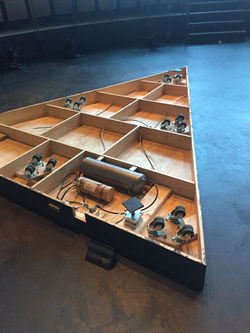

Pneumatic brake system

Large triangle platform changed location frequently and brakes kept it in place during scenes.

Triangle platform pneumatic controls

System included three brake cylinders, storage tank, input nozzle w/valve, push/pull valve for control, distribution and muffler

Footlight cover construction drawing

Shown with research image

Footlight fixture

3D rendering

Final footlight fixture

Streetlight

Component and budget estimates

Streetlight

Assembled and in place

Streetlight and set

Functional in production

Backstage R storage

Showing DS railings (installed using set screws in the deck) and bicycle generator for last scene. Generator was made to be functional but was not used as such during performance
